Commercial/Industrial Products

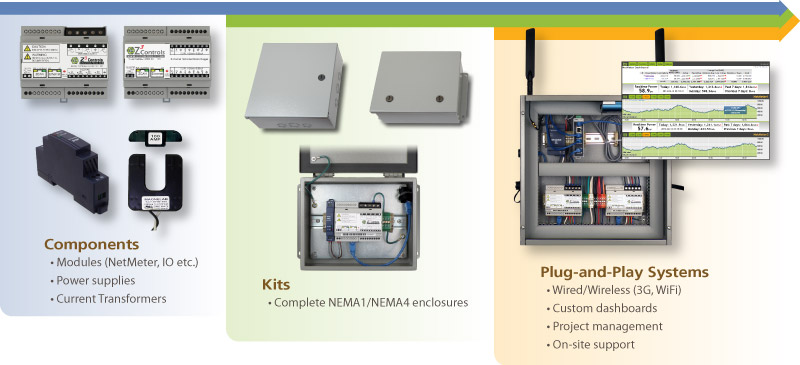

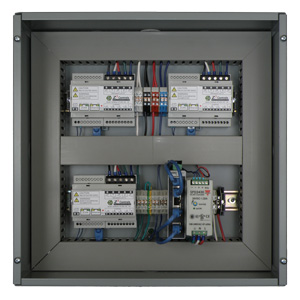

Product Overview
Z3 Controls offers modular components, ready-to-install Kits, and custom turn-key systems with wireless communication.
The heart of the Z3 Controls product line is the NetMeter family of products.
Modules/Components
NetMeter-3P: 3-Phase Electrical Energy Monitor
The NetMeter-3P is an easy to install and use 3-phase energy meter
NetMeter-OMNI: Multi-function Analog/Pulse Meter/Monitor
The NetMeter-OMNI is a highly flexible meter/monitor for use in gas, water, steam, air and other applications through sensors that will produce either a voltage output, a current loop, or a pulse output.

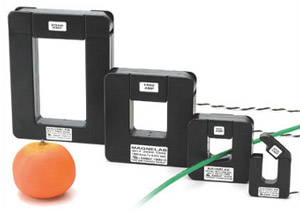

Current Transformers
The NetMeter-3P requires current transformers (CTs) to detect the load current. CTs are chosen for your application based on:
- The current rating of the circuit to be monitored
- The physical size of the conductor or bus bar that each CT will be attached to

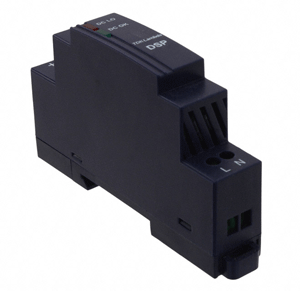

DIN Mount Power Supplies
NetMeter devices use 24 Volt power. Small DIN mount power supplies are available from Z3 Controls:
- 24VDC @ 420mA (can power up to 3 NetMeters)
- Part #: DSP-10-24
- 24VDC @ 1.3A
- Part #:DSP-30-24
| User Guides | ||||
|---|---|---|---|---|
| Title | Type | Size | Date | Note |
| DSP-10-24 Power Supply User Guide |  |
302.2KB | 2013-06-25 | |
| DSP-30-24 Power Supply User Guide | |
326.9KB | 2013-06-25 | |

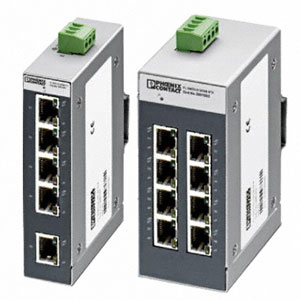

Industrial Ethernet Switches
These small DIN mounted industrial grade Ethernet switches allow a single Ethernet drop to fan-out to multiple NetMeters:
- 5 Port (Expansion for up to 4 NetMeters + 1 uplink)
- Part #: Z2891001
- 8 Port (Expansion for up to 7 NetMeters + 1 uplink)
- Part #: Z2891002
- 16 Port (Expansion for up to 15 NetMeters + 1 uplink)
- Part #: Z2832849
Complete Kits
NetMeter Kits provide everything you need to quickly install NetMeter systems.
Standard kits are listed below and other configurations are available on request.

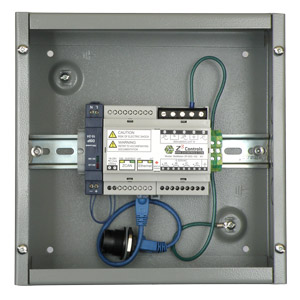

NEMA1 10"x10" Enclosure with NetMeter-3P
This NEMA1 Kit includes:
- NetMeter-3P-600
- NEMA1 10"x10"x4"
- DIN rail
- 110-240VAC to 24VDC Power Supply with ferruled hookup wires. Option for extended voltage power supply 320-600VAC.
- Ground terminals with ferruled grounding wires
- 3/4" KO mounted RJ45 feedthrough with 1' Ethernet cable
- NEMA1 10x10 Quick Guide
- NetMeter-3P Installation Manual
Order Part#:
- NEMA1-10X10X4-NETMETER-3P (4" deep, includes 110-240V power supply)
- NEMA1-10X10X4-NETMETER-3P-FS3 (Same as above plus 3-phase fuse/disconnect for use with 120/208V loads, 3 or 4-wire)
- NEMA1-10X10X4-NETMETER-3P-FS4 (Same as above plus single-phase fuse/disconnect for the power supply. For use with loads up to 600/347V, 3 or 4-wire)
- NEMA1-10X10X4-NETMETER-3P-FS3H (4" Deep, includes 180-400V power supply (line-to-neutral) and 3-phase fuse/disconnect. For use with 4-wire loads between 320V to 600V when a 120/208 supply is not available.)
- NEMA1-10X10X6-NETMETER-3P (same as NEMA1-10X10X4-NETMETER-3P except 6" deep to be able to accommodate accessories like an Ethernet switch)
- NEMA1-10X10X6-NETMETER-3P-FS3 (6" deep version of NEMA1-10X10X4-NETMETER-3P-FS3)
- NEMA1-10X10X6-NETMETER-3P-FS4 (6" deep version of NEMA1-10X10X4-NETMETER-3P-FS4)
- NEMA1-10X10X6-NETMETER-3P-FS3H (6" deep version of NEMA1-10X10X4-NETMETER-3P-FS3H)
- RJ45-KO (for extra RJ45 feedthrough with 1' Ethernet cable)
Documentation:
| User Manuals | ||||
|---|---|---|---|---|
| Title | Type | Size | Date | Note |
| NetMeter-3P-600 Installation Manual | |
4MB | 2015-12-21 | |
| User Guides | ||||
| Title | Type | Size | Date | Note |
| NetMeter-3P NEMA1 10"x10"(+Fuse Holder) QuickGuide | |
2.7MB | 2016-01-12 | |
| NetMeter-3P NEMA1 10"x10" QuickGuide | |
2.1MB | 2017-01-11 | |
| DSP-10-24 Power Supply User Guide | |
302.2KB | 2013-06-25 | |

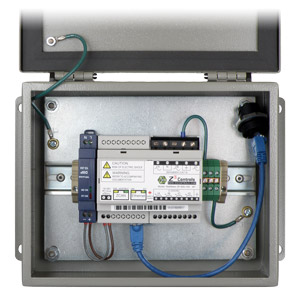

NEMA4/12 10"x8" Enclosure with NetMeter-3P
This NEMA4/12 Kit includes:
- NetMeter-3P-600
- NEMA4/12 10"x8"x4" enclosure with backplane
- DIN rail
- 24V Power Supply with ferruled hookup wires
- Ground terminals with ferruled grounding wires
- Grounding wire for the lid
- 3/4" KO mounted RJ45 feedthrough with 1' Ethernet cable
- NEMA4 10x8 Quick Guide
- NetMeter Installation Manual
Order Part#: NEMA4-10X8-NETMETER-3P
Documentation:
| User Manuals | ||||
|---|---|---|---|---|
| Title | Type | Size | Date | Note |
| NetMeter-3P-600 Installation Manual | |
4MB | 2015-12-21 | |
| User Guides | ||||
| Title | Type | Size | Date | Note |
| NetMeter-3P NEMA1 10"x10"(+Fuse Holder) QuickGuide | |
2.7MB | 2016-01-12 | |
| NetMeter-3P NEMA1 10"x10" QuickGuide | |
2.1MB | 2017-01-11 | |
| DSP-10-24 Power Supply User Guide | |
302.2KB | 2013-06-25 | |

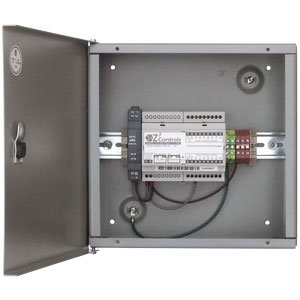

NEMA1 10"x10" Enclosure with NetMeter-OMNI
This NEMA1 NetMeter-OMNI Kit includes:
- NetMeter-OMNI-8C
- NEMA1 10"x10"x4" (or 6" deep option)
- DIN rail
- 110-240VAC to 24VDC Power Supply with ferruled hookup wires
- Optional finger safe fuse/disconnect
- Ground terminals with ferruled grounding wire
- 24V Distribution terminals for current-loop sensors
- 3/4" KO mounted RJ45 feedthrough with 1' Ethernet cable
- NetMeter-OMNI Installation Manual
Order Part#:
- NEMA1-10X10X4-NETMETER-OMNI-8C (4" Deep)
- NEMA1-10X10X4-NETMETER-OMNI-8C-FS (Same as above plus fuse/disconnect)
- NEMA1-10X10X6-NETMETER-OMNI-8C (6" Deep to be able to accommodate accessories like an Ethernet switch)
- NEMA1-10X10X6-NETMETER-OMNI-8C-FS (Same as above plus fuse/disconnect)
- RJ45-KO-1 (for extra RJ45 feedthrough with 1' Ethernet cable)
Documentation:
| User Manuals | ||||
|---|---|---|---|---|
| Title | Type | Size | Date | Note |
| NetMeter-OMNI-8C Installation Manual | |
3.4MB | 2014-02-19 | |
| User Guides | ||||
| Title | Type | Size | Date | Note |
| NetMeter-OMNI NEMA1 10"x10" QuickGuide | |
2.7MB | 2014-09-24 | |

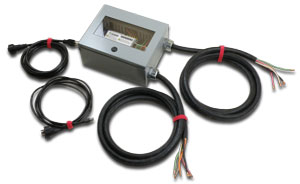

Evaluation Systems
NEMA4 Evaluation Systems are ready to attach to almost any panel or equipment, allow you to "try before you buy".
- High quality pre-fabricated NEMA4 enclosure containing a NetMeter and power supply
- Reference voltage via 2m 14 gauge SOW with grommet for 3/4" KO
- CTs via 2m 18 gauge SOW with grommet for 1/2" KO
- 200A or 100A CTs (3)
- 120V Power cord for 24V supply
- Ethernet cable
- Quick Install Guide
- NetMeter Installation Manual
Call to arrange an evaluation.
Documentation:
| User Manuals | ||||
|---|---|---|---|---|
| Title | Type | Size | Date | Note |
| NetMeter-3P-600 Installation Manual | |
4MB | 2015-12-21 | |
| User Guides | ||||
| Title | Type | Size | Date | Note |
| NetMeter Eval System: Quick Install Guide | |
125.2KB | 2012-07-11 | |
Wireless/Custom Systems
Z3 Controls offers customized systems that combine NetMeter technology with multiple sensor types and wireless communication:
- Mixed-mode monitoring using multiple sensor types
- Temperature using IR, thermocouple, RTD, etc.
- Pressure (absolute, differential)
- Volumetric pulse output
- Totalization of KY/KZ mechanical pulse meters
- 4-20mA current loop sensors
- Voltage output sensors
- Electrical power (AC and DC)
- 3G Wireless communication
- Custom dashboards

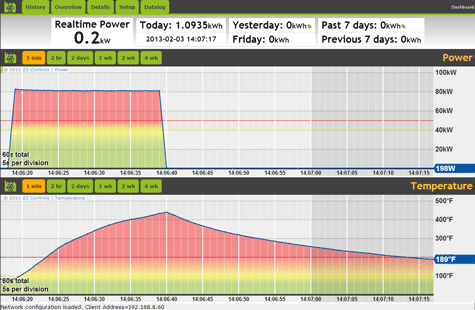

Dashboard Showing Power and Temperature
Rental Units
For temporary and long term audits Z3 Controls offers rental units. These include the 3-Phase, 600V data-logging submeters the NetMeter-3P-600, with embedded analytics and our Universal data-logger the NetMeter-OMNI-8C.
- Ideal for Retrofit, M&V, Boiler Studies, Compressed Air Audits, Audits, Chiller Monitoring and Related applications
- NEMA 1 enclosures available for indoor environments
- NEMA 4 enclosures are available for hostile environments
- Please contact Z3 Controls for pricing information
